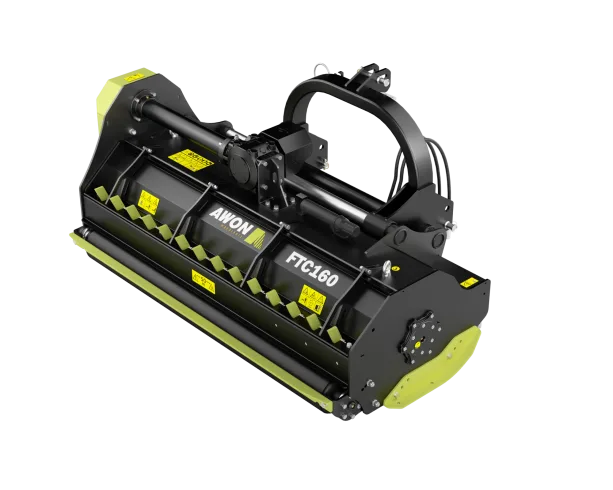

FTC Branche shredder Side-shift Heavy
The FTS branch crushers are designed for tractors ranging from 70 to 100 HP and offer working widths from 1.6 to 2.2 meters. By default, they are equipped with hammer blades, providing a good balance between cutting quality and cutting power. They can cut branches with diameters of up to 80 mmm
In addition to branch shredding, the FTC series can also cut weeds and shrubs, featuring a side-shift function for flexible operation. It is an ideal machine for orchards and vineyards, capable of mowing, weeding, crushing, and mulching in one pass.
Models
- FTC160
- FTC180
- FTC200
- FTC220
Product features
-
Side-shift function
-
Two counter blades
-
Rear roller scraper
-
Openable rear cover
Technical Specifications
Branche shredder - Side-shift Heavy
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FTC160 | 1808 | 1600 | 540 | 70-100 / 52-75 | 4 | 670 | 16 |
| FTC180 | 2008 | 1800 | 540 | 70-100 / 52-75 | 4 | 700 | 18 |
| FTC200 | 2208 | 2000 | 540 | 70-100 / 52-75 | 4 | 726 | 20 |
| FTC220 | 2408 | 2200 | 540 | 70-100 / 52-75 | 4 | 756 | 22 |
Optional parts
SD550
The SD550 hydraulic avoidance disc cutter uses a passive avoidance mechanism that relies on the rebound of a nitrogen spring when pressure is applied.
The disc adapts to the ground contours and is suitable for weeding between orchard rows with fruit tree seedlings of more than 4 cm in diameter.
HD550
The HD550 hydraulic avoidance disc cutter, designed as a mower accessory, is specifically developed for orchard weeding operations. Its hydraulic cylinder provides automatic resetting and rebound, allowing the disc to follow the ground contours smoothly.
The hydraulic touch rod operates the reversing valve for active obstacle avoidance and responds sensitively to directional changes, making it safe to use around young orchard seedlings without causing damage
Y-Blade
Y blades offer the best cutting performance in terms of cutting result, producing finer residues than hammer blades. However, they are less suitable for cutting larger branches and have a smaller cutting capacity compared to hammer blades.
