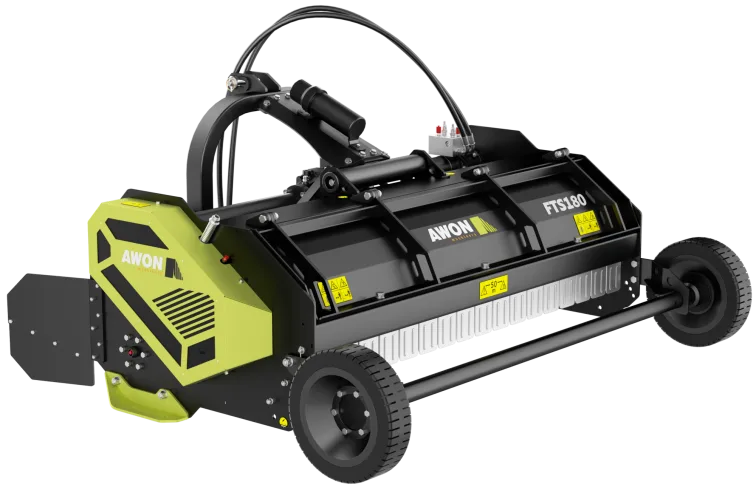

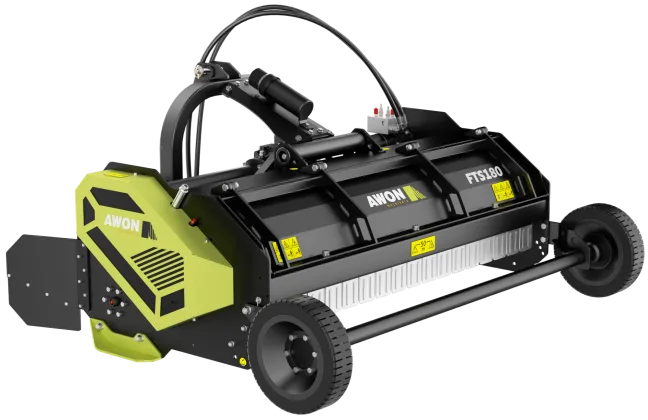

FTS Branche shredder Standard Heavy
The FTS branch crushers are designed for tractors ranging from 80 to 120 HP and offer working widths from 1.4 to 1.8 meters. They are equipped with a rotary pickup device that automatically collects branches, ensuring efficient operation with low power requirements and excellent fuel economy. The unique dual transmission system and H-type blades allow the machine to effectively crush branches with diameters of up to 100 mm.
Models

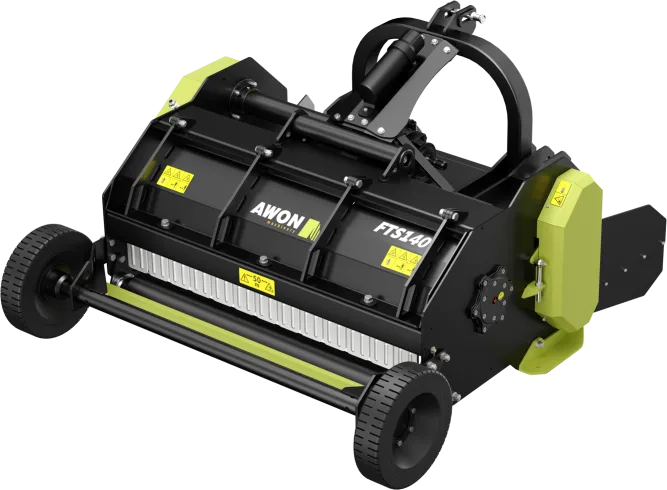

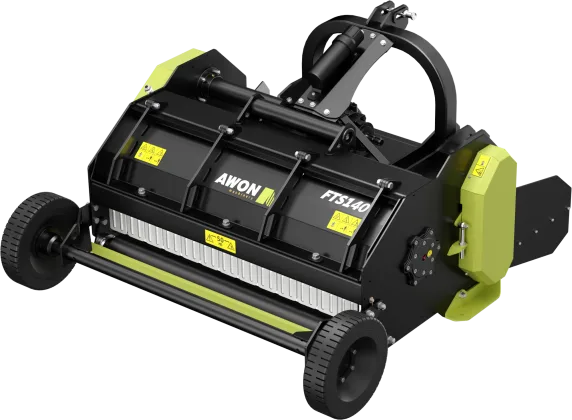

- FTS140
- FTS160
- FTS180
Unique Product Features

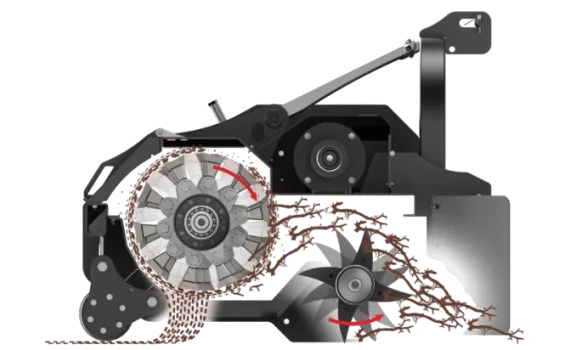

Automatic pick-up
Designed for efficiency, the FTS series picks up branches directly from the ground and feeds them into the cutting chamber via the pickup roller. The shredded material is evenly spread back onto the ground, making branch cleanup quick and effortless.

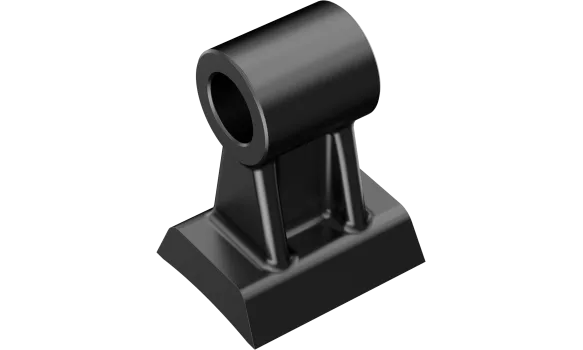

Special H-blade
Forged for strength, the heavy-duty double-edged hammer blades deliver exceptional crushing power and are primarily designed for FTS branch shredders.
Product features
-
Two counter blades
-
Rear roller scraper
-
Openable rear cover
-
Automatic belt tensioning system
Technical Specifications
Branche shredder - Standard Heavy
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
H-blades (pcs) |
| FTS140 | 1640 | 1400 | 540 | 80-120 / 60-90 | 4 | 758 | 22 |
| FTS160 | 1840 | 1600 | 540 | 80-120 / 60-90 | 4 | 822 | 26 |
| FTS180 | 2040 | 1800 | 540 | 100-120 / 75-90 | 4 | 898 | 28 |
