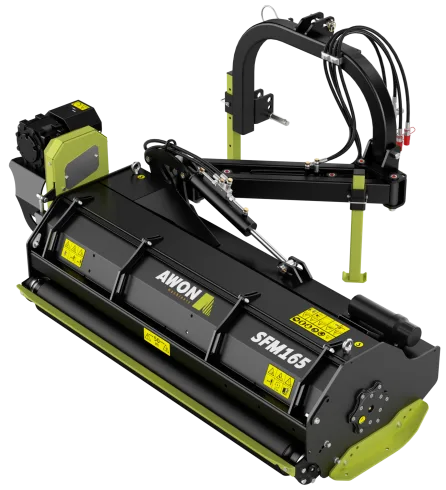

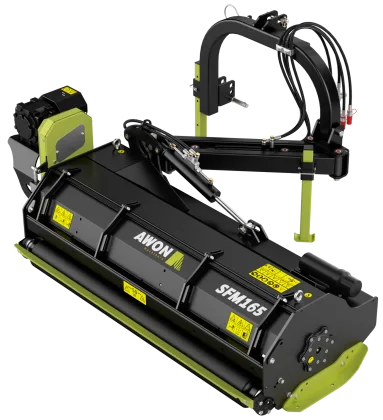

SFM Flail mower Offset Medium
The SFM Medium offset flail mowers are suitable for tractors ranging from 60 to 80 HP and offer working widths from 1.65 to 2.05 meters. By default, they are equipped with hammer blades, providing a good balance between cutting quality and cutting power. With a working angle from +90° to -45°, the SFM flail mower adapts effortlessly to uneven or sloped terrain, making it ideal for cutting grass, weeds, and branches along embankments and roadsides.
Models
- SFM165
- SFM185
- SFM205
Product features
-
Counter blade
-
Rear roller scraper
-
Openable rear cover
-
Automatic belt tensioning system
Technical Specifications
Flail mower - Offset Light
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| SFM120 | 1090 | 1200 | 540 | 25-40 / 19-30 | 3 | 352 | 20 |
| SFM140 | 1090 | 1400 | 540 | 30-50 / 22-37 | 3 | 374 | 24 |
| SFM160 | 1090 | 1600 | 540 | 30-50 / 22-37 | 3 | 390 | 26 |
Flail mower - Offset Medium
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| SFM165 | 1090 | 1650 | 540 | 60-80 / 45-60 | 3 | 490 | 22 |
| SFM185 | 1090 | 1850 | 540 | 60-80 / 45-60 | 3 | 546 | 24 |
| SFM205 | 1090 | 2050 | 540 | 60-80 / 45-60 | 3 | 558 | 26 |
Flail mower - Offset Heavy
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive Belts |
Weight (kg) |
Hammer blades (pcs) |
| SFM180 | 1330 | 1800/71 | 540 | 90-120 / 67-90 | 4 | 730 | 18 |
| SFM200 | 1330 | 2000/79 | 540 | 90-120 / 67-90 | 4 | 765 | 20 |
| SFM220 | 1330 | 2200/87 | 540 | 90-120 / 67-90 | 4 | 784 | 22 |
| SFM240 | 1330 | 2400/95 | 540 | 90-120 / 67-90 | 4 | 874 | 24 |
Optional parts

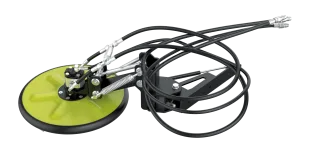

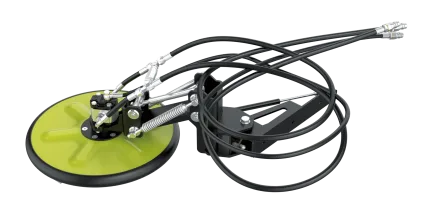

SD550
The SD550 hydraulic avoidance disc cutter uses a passive avoidance mechanism that relies on the rebound of a nitrogen spring when pressure is applied.
The disc adapts to the ground contours and is suitable for weeding between orchard rows with fruit tree seedlings of more than 4 cm in diameter.

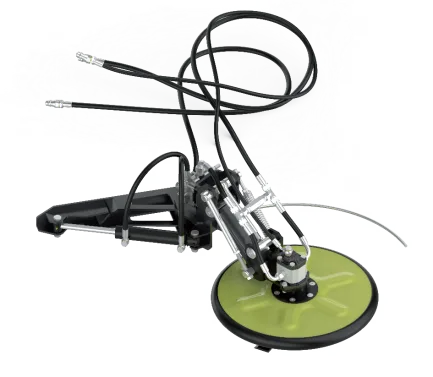

HD550
The HD550 hydraulic avoidance disc cutter, designed as a mower accessory, is specifically developed for orchard weeding operations. Its hydraulic cylinder provides automatic resetting and rebound, allowing the disc to follow the ground contours smoothly.
The hydraulic touch rod operates the reversing valve for active obstacle avoidance and responds sensitively to directional changes, making it safe to use around young orchard seedlings without causing damage

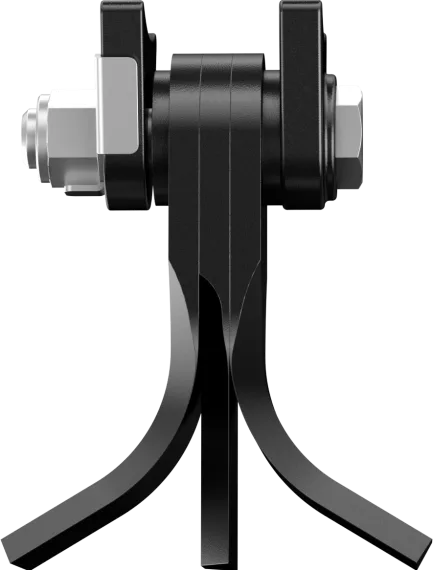

Y-Blade
Y blades offer the best cutting performance in terms of cutting result, producing finer residues than hammer blades. However, they are less suitable for cutting larger branches and have a smaller cutting capacity compared to hammer blades.
