DM520 Flail mower Telescopic flail mower Medium

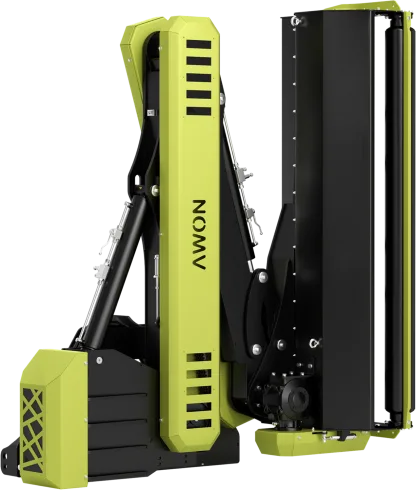

The DM520 folding power boom mulcher combines strength, reach, and efficiency. With a maximum reach of 5.2 meters, it is compatible with tractors ranging from 140 to 180 HP. Fitted with hammer blades by default, it offers an excellent balance between cutting quality and power. Designed for durability and easy maintenance, the DM520 ensures reliable and efficient operation
Models
- DM520
Product features
The powerful boom of the DM520 makes it ideal for a wide range of challenging environments such as ditches, embankments and areas along highways.
-

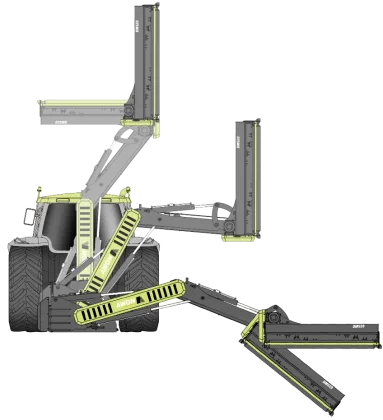

Maximum reach of 5.20 meter
-
Working angle of +90° to -45°
-
Two counter blades
-
Rear roller scraper
Technical Specifications
Flail mower - Telescopic flail mower Medium
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| DM520 | 1905 | 2050 | 1000 | 140-180 / 104-134 | 12 | 1392 | 26 |
Optional parts
Y-Blade
Y blades offer the best cutting performance in terms of cutting result, producing finer residues than hammer blades. However, they are less suitable for cutting larger branches and have a smaller cutting capacity compared to hammer blades.
