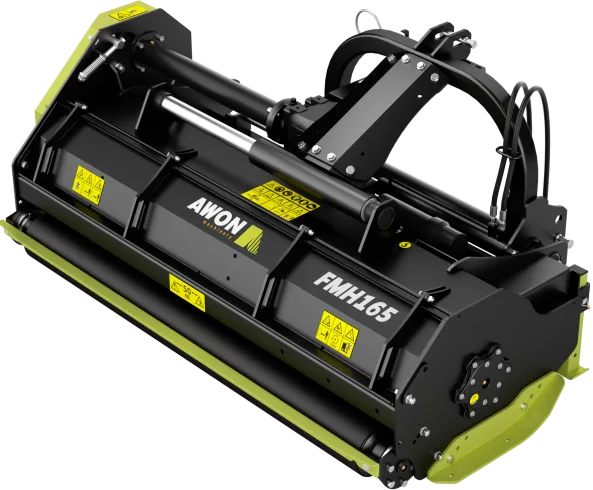

FMH Flail mower Side-shift Medium
The FMH Medium side-shift flail mowers are suitable for tractors ranging from 50 to 70 HP and offer working widths from 1.65 to 2.05 meters. By default, they are equipped with hammer blades, providing a good balance between cutting quality and cutting power. FMH flail mowers are mainly used on relative flat terrain, cutting roadside grass, maintaining park greenery, and mowing between rows in orchards.
Models
- FMH165
- FMH185
- FMH205
Product features
-
Side-shift function
-
Counter blade
-
Rear roller scraper
-
Openable rear cover
-
Automatic belt tensioning system
Technical Specifications
Flail mower - Side-shift Light
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FMH120 | 1350 | 1200 | 540 | 30-50 / 22-37 | 3 | 260 | 20 |
| FMH140 | 1550 | 1400 | 540 | 30-50 / 22-37 | 3 | 274 | 24 |
| FMH160 | 1750 | 1600 | 540 | 30–50 / 22–37 | 3 | 300 | 26 |
Flail mower - Side-shift Medium
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FMH165 | 1820 | 1650 | 540 | 50–70 / 37-52 | 3 | 480 | 22 |
| FMH185 | 2020 | 1850 | 540 | 50–70 / 37-52 | 3 | 510 | 24 |
| FMH205 | 2220 | 2050 | 540 | 50–70 / 37-52 | 3 | 540 | 26 |
Flail mower - Side-shift Heavy
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FMH180 | 2000 | 1800 | 540 | 70-100 / 52-75 | 4 | 622 | 18 |
| FMH200 | 2200 | 2000 | 540 | 70-100 / 52-75 | 4 | 672 | 20 |
| FMH220 | 2400 | 2200 | 540 | 70-100 / 52-75 | 4 | 705 | 22 |
| FMH240 | 2600 | 2400 | 540 | 70-100 / 52-75 | 4 | 740 | 24 |
Flail mower - Side-shift Max
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FMH260 | 2840 | 2600 | 540 | 90–130 / 67–97 | 5 | 1104 | 24 |
| FMH280 | 3040 | 2800 | 540 | 90–130 / 67–97 | 5 | 1156 | 26 |
| FMH300 | 3240 | 3000 | 540 | 90–130 / 67–97 | 5 | 1208 | 28 |
Optional parts
SD550
The SD550 hydraulic avoidance disc cutter uses a passive avoidance mechanism that relies on the rebound of a nitrogen spring when pressure is applied.
The disc adapts to the ground contours and is suitable for weeding between orchard rows with fruit tree seedlings of more than 4 cm in diameter.
HD550
The HD550 hydraulic avoidance disc cutter, designed as a mower accessory, is specifically developed for orchard weeding operations. Its hydraulic cylinder provides automatic resetting and rebound, allowing the disc to follow the ground contours smoothly.
The hydraulic touch rod operates the reversing valve for active obstacle avoidance and responds sensitively to directional changes, making it safe to use around young orchard seedlings without causing damage
Y-Blade
Y blades offer the best cutting performance in terms of cutting result, producing finer residues than hammer blades. However, they are less suitable for cutting larger branches and have a smaller cutting capacity compared to hammer blades.
OTK
When the tractor’s hydraulic system cannot deliver sufficient flow or pressure to power the attached implement, the OTK attachment provides a highly efficient solution. This system is mechanically driven directly from the mower’s gearbox, eliminating the need for additional hydraulic connections to the tractor.
Without the OTK system, the tractor’s limited hydraulic oil volume can lead to excessive heat buildup and reduced system performance. The OTK system delivers a hydraulic flow rate of 30 L/min at a working pressure of 16 MPa.
