FM Flail mower Standard Max
The FM Max flail mowers are suitable for tractors ranging from 90 to 120 HP and offer working widths from 2.6 to 3 meters. They are equipped with hammer blades, providing a good balance between cutting quality and cutting power. FM flail mowers are primarily used on relatively flat terrain for cutting roadside grass, maintaining park greenery, and mowing between rows in orchards
Models

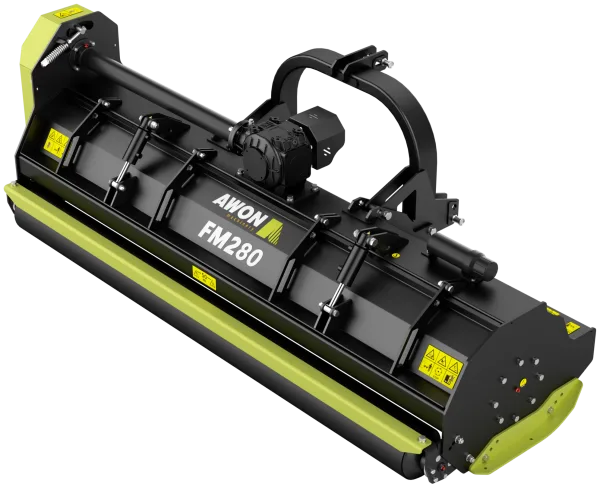

- FM260
- FM280
- FM300
Product features
-
Two counter blades
-
Rear roller scraper
-
Hydraulically opening rear cover
-
Automatic belt tensioning system
Technical Specifications
Flail mower - Standard Light
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO Speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FM100 | 1150 | 1000 | 540 | 25–40 / 18–30 | 3 | 205 | 18 |
| FM120 | 1350 | 1200 | 540 | 25–40 / 18–30 | 3 | 228 | 20 |
| FM140 | 1550 | 1400 | 540 | 30–50 / 22–37 | 3 | 252 | 24 |
| FM160 | 1750 | 1600 | 540 | 30–50 / 22–37 | 3 | 264 | 26 |
Flail mower - Standard Medium
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FM165 | 1820 | 1650 | 540 | 50-70 / 37-52 | 3 | 440 | 22 |
| FM185 | 2020 | 1850 | 540 | 50-70 / 37-52 | 3 | 496 | 24 |
| FM205 | 2220 | 2050 | 540 | 50-70 / 37-52 | 3 | 502 | 26 |
Flail mower - Standard Heavy
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FM180 | 2000 | 1800 | 540 | 70-100 / 52-75 | 4 | 599 | 18 |
| FM200 | 2200 | 2000 | 540 | 70-100 / 52-75 | 4 | 633 | 20 |
| FM220 | 2400 | 2200 | 540 | 70-100 / 52-75 | 4 | 670 | 22 |
| FM240 | 2600 | 2400 | 540 | 70-100 / 52-75 | 4 | 800 | 24 |
Flail mower - Standard Max
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Drive belts |
Weight (kg) |
Hammer blades (pcs) |
| FM260 | 2850 | 2600 | 540 | 90-120 / 67-89 | 5 | 872 | 24 |
| FM280 | 3050 | 2800 | 540 | 90-120 / 67-89 | 5 | 906 | 26 |
| FM300 | 3250 | 3000 | 540 | 90-120 / 67-89 | 5 | 1026 | 28 |
Optional parts
SD550
The SD550 hydraulic avoidance disc cutter uses a passive avoidance mechanism that relies on the rebound of a nitrogen spring when pressure is applied.
The disc adapts to the ground contours and is suitable for weeding between orchard rows with fruit tree seedlings of more than 4 cm in diameter.
HD550
The HD550 hydraulic avoidance disc cutter, designed as a mower accessory, is specifically developed for orchard weeding operations. Its hydraulic cylinder provides automatic resetting and rebound, allowing the disc to follow the ground contours smoothly.
The hydraulic touch rod operates the reversing valve for active obstacle avoidance and responds sensitively to directional changes, making it safe to use around young orchard seedlings without causing damage
