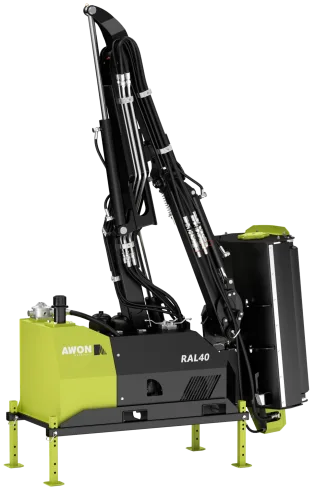

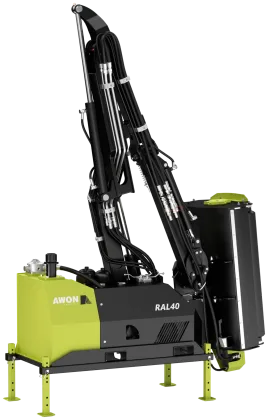

RAL 40 + RML Hydraulic mower Power boom Light

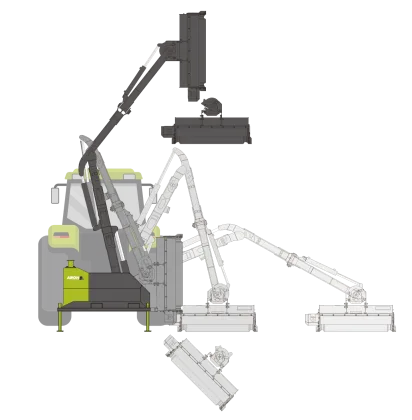

The RAL40 power boom features a multifunctional attachment connection, allowing quick switching of tools to suit different terrains and operational requirements, making it versatile for a variety of tasks. The mechanical boom extends up to 3.3 m from the center of the tractor and has a working range of +90° to –55°, providing flexible and precise operation.
The hydraulic transmission system ensures stable performance, with independent control of the boom extension and cutting functions, delivering high transmission efficiency and smooth, efficient operation. For safe and stable use, a minimum tractor weight of 2,000 kg is recommend.
Models
- RML100
- RML120
- RML140
Product features
-
Range of +90° to -55°
-
Maximum extention of 3.30 meters
-
Multiple applications
-
Quick change connection
Technical Specifications
Hydraulic mower - Power boom Light
|
Model Type |
Transport width (mm) |
Working width (mm) |
PTO speed (rpm) |
Tractor (hp-kW) |
Oil flow (L/min) |
Weight (kg) |
Hammer blades (pcs) |
| RML100 | 1780 | 1000 | 540 | 70 | 30 | 118 | 18 |
| RML120 | 1780 | 1200 | 540 | 70 | 30 | 132 | 20 |
| RML140 | 1780 | 1400 | 540 | 70 | 30 | 391 | 24 |
Optional parts
RML

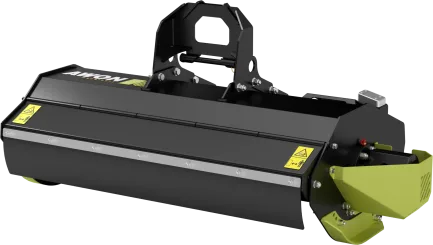

The RML series hydraulic cutting head features a fully hydraulic drive system for stable transmission performance and versatile operation across different conditions. The RML has working widths of 1, 1.2 and 1.4 meters.
By default, they are equipped with hammer blades, providing a good balance between cutting quality and cutting power. A configuration with Y-blades is also possible.

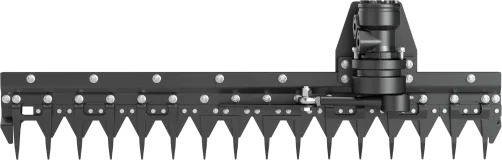

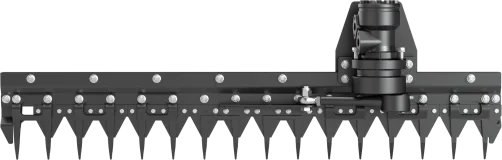

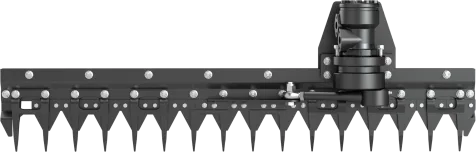

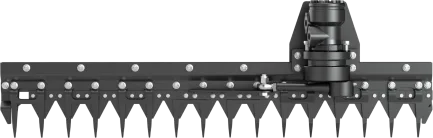

Hedgetrimmer
Not available yet.
