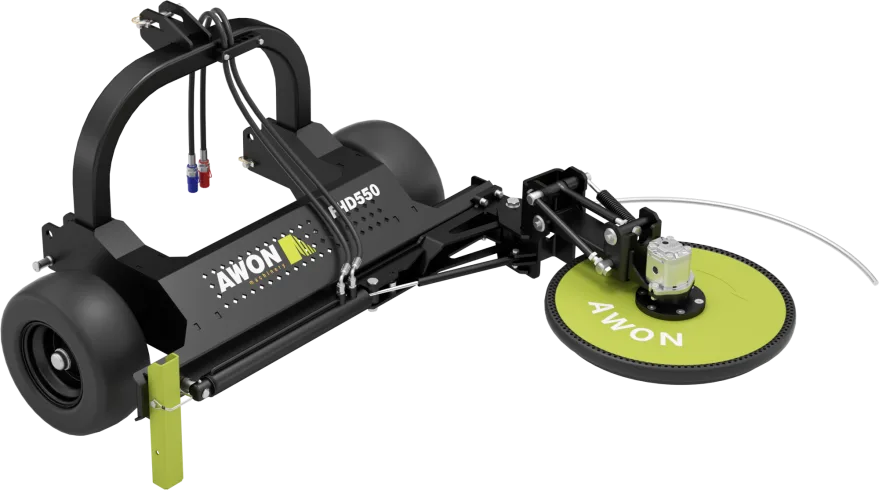

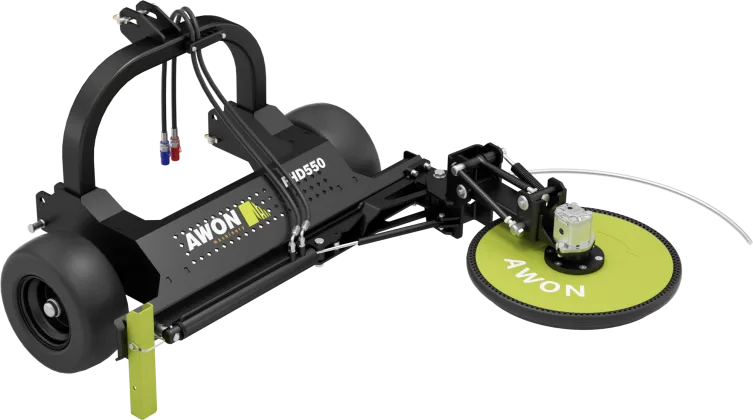

FH Hydraulic side mower Side-shift Light
The FH side mower enables the user to cut grass beneath tree canopies where the tractor cannot reach. It is specifically designed for orchards with large tree crowns, yet also ideal for mowing around fences and other hard-to-reach areas. The machine can be equiped with an active or passive hydraulic disc.
Models
- FH+SD550
- FH+HD550
Product features
-
Range of 79cm
-
Fast and convenient side-shift function
-
Ground following disc
Technical Specifications
Hydraulic side mower - Side-shift Light
|
Model Type |
Transport width (mm) |
Working width (mm) |
Tractor Hp-kw |
Oil flow (L/min) |
Weight (kg) |
||
| FH+SD550 | 1543 | 550 | 50-70 / 37-52 | 30 | 190 | ||
| FH+HD550 | 1546 | 550 | 50-70 / 37-52 | 30 | 180 |
Optional parts
HD550
The HD550 hydraulic avoidance disc cutter, designed as a mower accessory, is specifically developed for orchard weeding operations. Its hydraulic cylinder provides automatic resetting and rebound, allowing the disc to follow the ground contours smoothly.
The hydraulic touch rod operates the reversing valve for active obstacle avoidance and responds sensitively to directional changes, making it safe to use around young orchard seedlings without causing damage

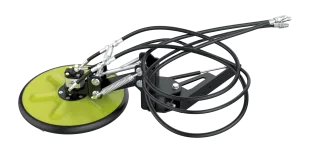

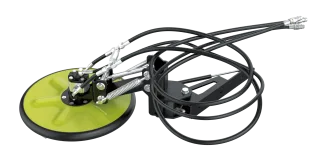

SD550
The SD550 hydraulic avoidance disc cutter uses a passive avoidance mechanism that relies on the rebound of a nitrogen spring when pressure is applied.
The disc adapts to the ground contours and is suitable for weeding between orchard rows with fruit tree seedlings of more than 4 cm in diameter.
