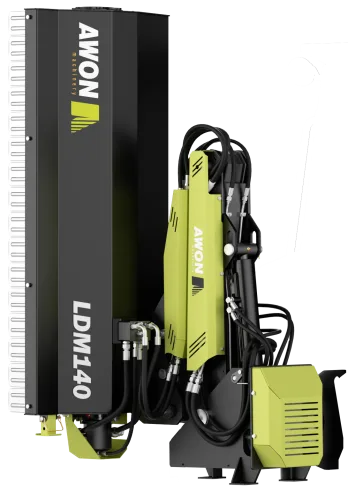

LDM Hydraulic mower Telescopic flail mower Light
The LDM Series telescopic boom mower is hydraulically driven and designed for use with loaders. By default, they are equipped with hammer blades, providing a good balance between cutting quality and cutting power.
Its telescopic boom provides a reach of up to 2.8 meters. The cutter head is mounted on the mechanical boom and operated via a cable control panel equipped with a joystick, allowing smooth extension and retraction.
Models
- LDM100
- LDM120
- LDM140
Product features
-

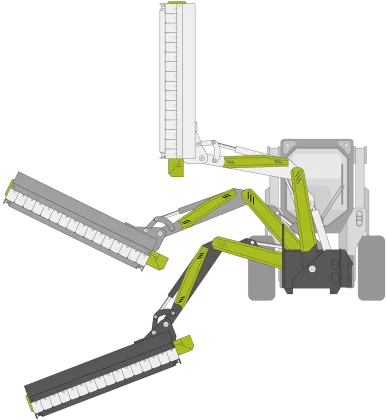

Working angle of +90° to -45°
-

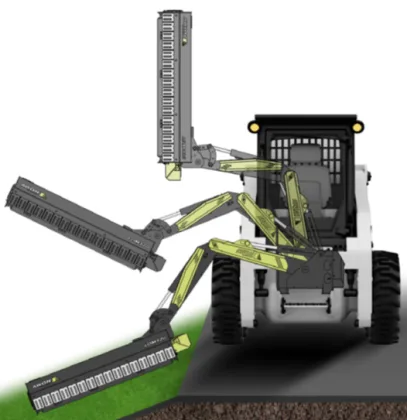

Maximum reach of 2.80 meters
-
Custom mounts available for all types of loaders
Technical Specifications
Hydraulic mower - Telescopic flail mower Light
|
Model Type |
Transport width (mm) |
Working width (mm) |
Oil flow (L/min) |
Weight (kg/lb) |
Hammer blades (pcs) |
||
| LDM100 | 1050 | 1000 | 30 | 361 | 18 | ||
| LDM120 | 1050 | 1200 | 30 | 376 | 20 | ||
| LDM140 | 1050 | 1400 | 30 | 391 | 24 |
Optional parts
Y-Blade
Y blades offer the best cutting performance in terms of cutting result, producing finer residues than hammer blades. However, they are less suitable for cutting larger branches and have a smaller cutting capacity compared to hammer blades.
